Additive Manufacturing Solutions

ZFR EV AP 420

ZFR EV AP 420

$8,832

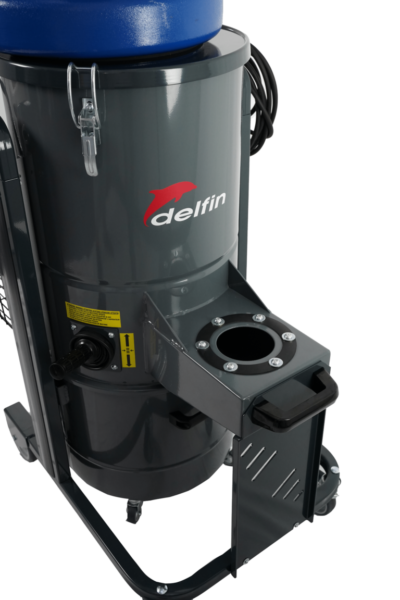

The ZEFIRO EV AP 420 is the most compact mobile dust collector for airborne dust

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

FEATURES

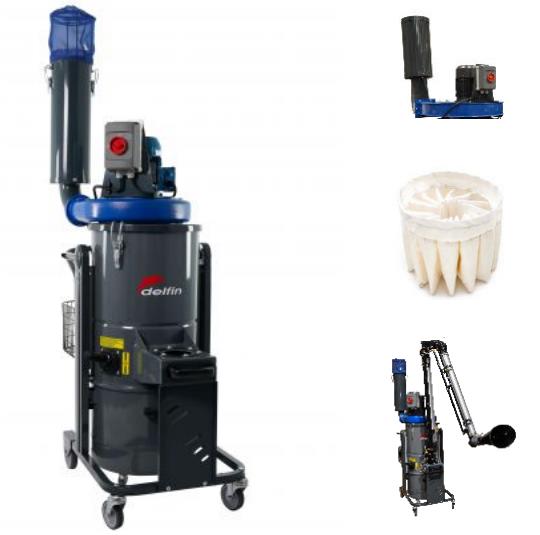

The ZEFIRO EV AP 420 is the most compact mobile dust collector for airborne dust. Its powerful electric fan (230/460Volt 3~ | 1.2 HP) generates high airflow rates (412 CFM), that move large volumes of air, thus capturing airborne particles. This industrial dust collector will get rid of airborne particles generated by spillages, product transfer, packing and loading, or mechanical operations such as chipping or grinding. The polyester star filter guarantees the quality of the air reinserted into the environment while protecting the fan. The filter can be easily cleaned by a manual integrated filter shaking system. The material captured by the ZEFIRO EV AP 420 is collected in an 11.9 gal roll-out container.

SUCTION UNIT

The suction is provided by three by-pass motors, using carbon brushes, operated by independent switches and placed inside a sturdy steel casing, filled with soundproofing material.

FILTER UNIT

The large surface star filter, located inside the filter steel chamber, is made of polyester and provides high resistance against clogging and passage of fine dust.
It is possible to clean the filter using an integrated mechanical system. An external lever shakes the filter vertically and enables cleaning the filter thoroughly and safely, maintaining constant suction performance and preventing any dispersion of dust in the environment.

COLLECTION UNIT

The roll-ou steel collection tank has a quick release system for the rapid disposal of the vacuumed material.

INDUSTRIAL DUST COLLECTOR FOR AIRBORNE DUST


• Compact and customizable
• Electric fan for high airflow
• Ideal for 24/7 production cycles
• Complete steel construction
• Large filter surface
• High filtration efficiency
• Easy filter replacement
• Accessory basket
• Roll-out collection tank
• Integrated filter cleaning system
• Optional arm for localized suction

  • Brand Delfin
  • Voltage 230/460 – 60
  • Power 1.2 HP
  • Electrical Protection IP55
  • Max Airflow 412 CFM
  • Suction Inlet 4 in
  • Capacity 11.9 gal
  • Dimensions (WxLxH) 23x25x71 cm / 58x63x180 in
  • Noise Level (EN ISO 3744) 70 dB(A)
  • Weight 170 lbs
  • Wet Primary Filter Type Star
  • Material – Efficiency Polyester – L
  • Filter Surface Area 22 ft²

Videos
