Hardness Testers, Customized Solutions
Clamping fixtures
QATM clamping fixtures hold a workpiece securely and repeatably in a hardness tester so the indentation lands exactly where the specification requires — custom-designed to your part geometry and matched to your QATM or QNESS tester.
- ✓ Secure, repeatable positioning — no movement under test load
- ✓ Custom-designed for round, tubular, irregular and small parts
- ✓ Matched to QATM / QNESS bench testers and automated plants
- ✓ Lead time: 3–6 weeks — made to order
Price held 7 days after order.
Made to your part
Fits QATM & QNESS testers
What your quality team actually checks
What your quality team actually checks
Positioning is where results scatter
A hardness reading is only valid if the part is held rigidly at the specified point. A fixture designed to your geometry removes part movement and operator placement as sources of scatter — so the reading reflects the material, not how the piece happened to sit.
A hardness-testing engineer on the line
Send your part and the tester it runs on; QATM engineers the fixture to locate and clamp it precisely. We supply the whole hardness-testing chain, not just parts. Sub-4h reply, NDA standard.
Custom-built
Fixture design
QATM / QNESS
Compatibility
Repeatable
Positioning
Austria
Made in
About this product
QATM clamping fixtures hold a workpiece securely and repeatably in a hardness tester so the indentation lands exactly where the specification requires — custom-designed to your part geometry for round, tubular, irregular and small components.
Why the fixture matters as much as the tester
A hardness reading is only valid if the part is held rigidly at the right position — the fixture is what makes the result repeatable.
Secure, repeatable positioning
The part is clamped rigidly so it can’t shift under test load, and it seats the same way every time — the indentation lands at the specified point on every piece.
Designed to your part

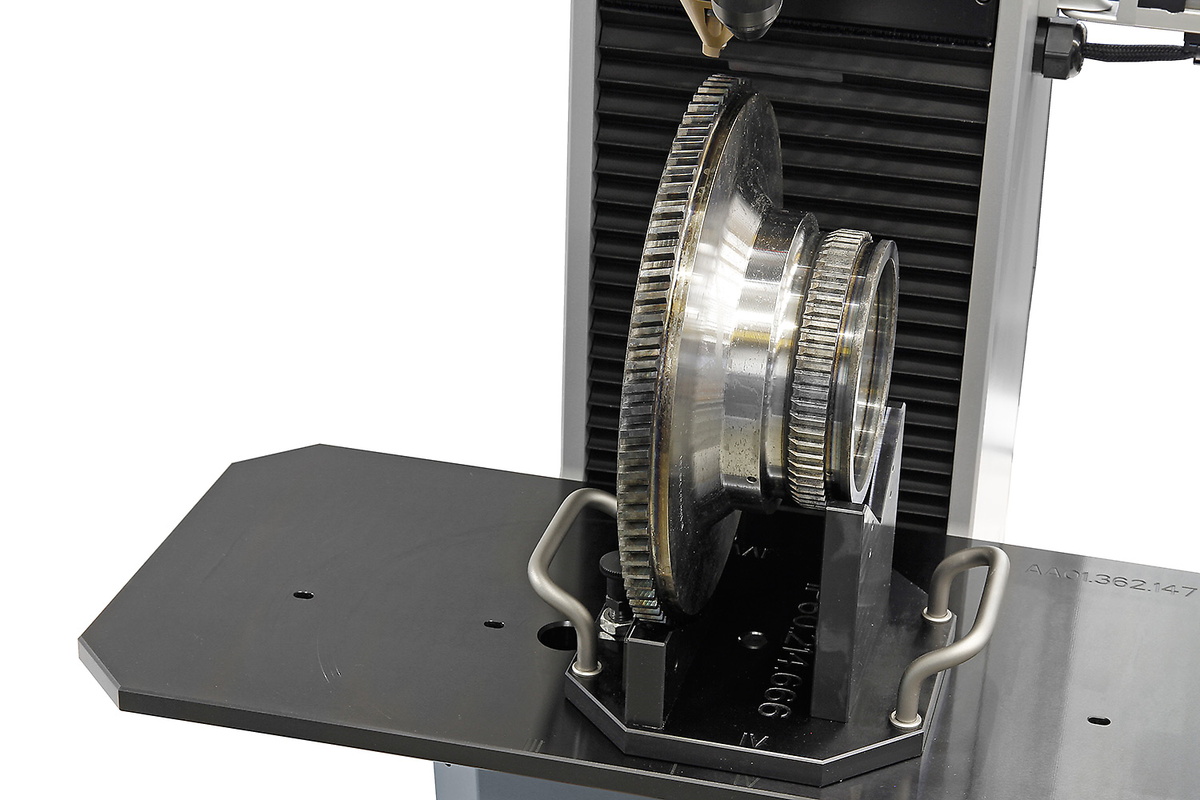

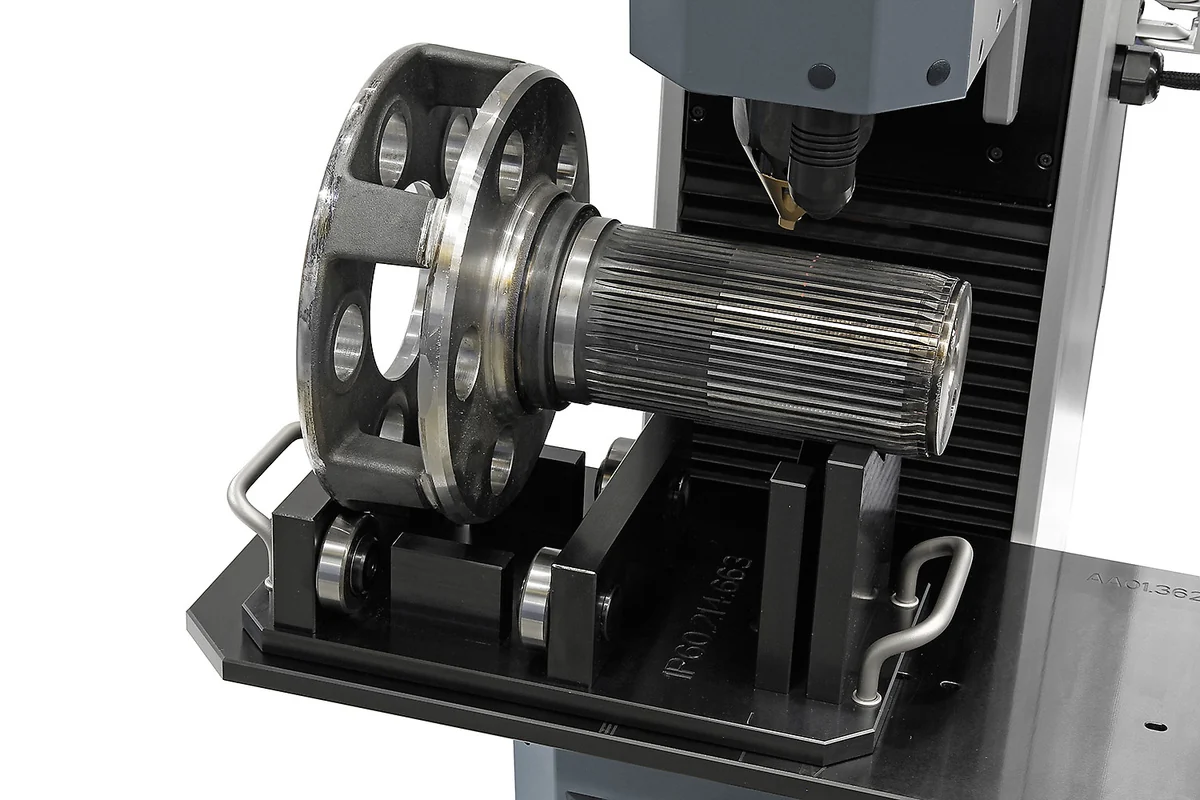

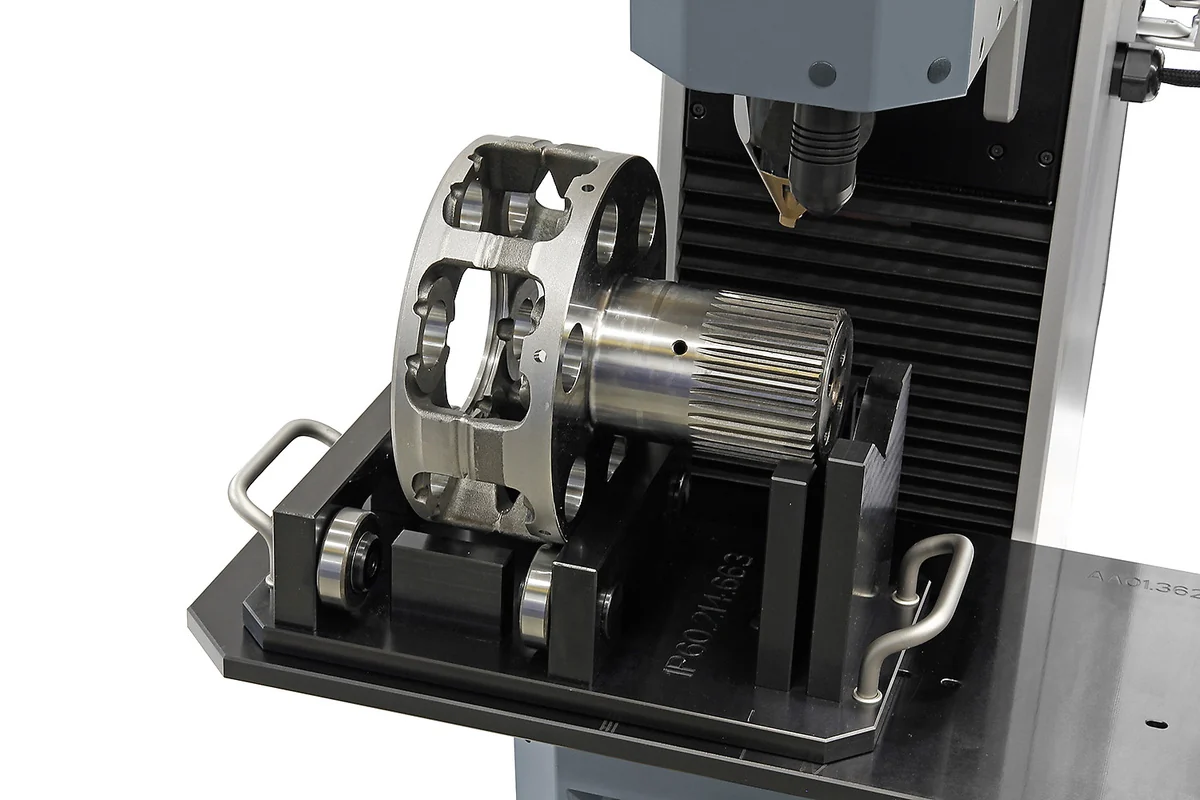

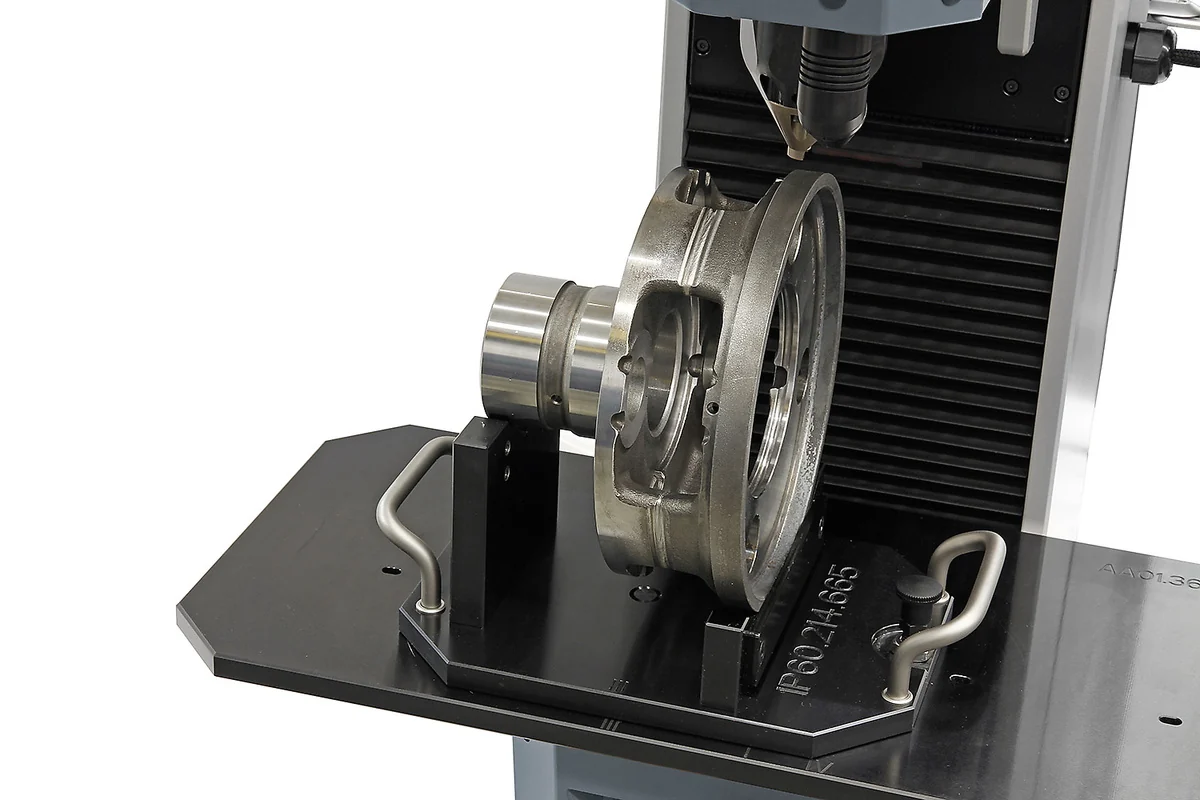

Each fixture is engineered to the specific geometry — round bars, rings, tubes, gears or irregular castings — so awkward shapes are located precisely instead of balanced by hand.
Standard-compliant results
Stable clamping removes part movement as a source of scatter, so Vickers, Brinell and Rockwell readings stay within the tolerance your standard requires.
Fits your QATM tester
Fixtures are matched to QATM and QNESS bench hardness testers and to automated testing plants, so they integrate with the equipment you already run.
How Additive Plus supplies your fixtures
A fixture is engineered around your part and your tester — send us both and we build it.
Step 01
Send part and tester
Share the workpiece geometry (or a drawing) and the hardness tester or plant it runs on, plus the required test positions.
Step 02
Designed and built in Austria
QATM engineers the fixture to locate and clamp your part precisely, and manufactures it to fit your tester.
Step 03
Fit and verify
The fixture is fitted and checked so the indentation reaches the specified point repeatably before it goes into production use.
Repeatable positioning, part after part
Odd geometries — round bars, rings, tubes, gears and irregular castings — are the parts most likely to move under a hardness indenter or to be positioned differently by each operator. A custom clamping fixture locates and holds them the same way every time, so the test point is exactly where the drawing specifies and the reading reflects the material, not how the part happened to sit. Fixtures are matched to QATM and QNESS bench testers and to automated hardness testing plants.
Typical applications
Any part that won’t sit flat and stable on a standard anvil.
Round bars & rings
Curved surfaces located precisely
Tubes & pipes
Held without deforming the wall
Gears & shafts
Toothed and stepped geometries
Irregular castings
Non-flat, asymmetric parts
Small components
Parts too small to clamp by hand
Serial production
Repeatable seating across a batch
Which tester are the fixtures for?
Fixtures are matched to the QATM hardness tester or plant you run.
Tell us your part and the tester it runs on — a hardness-testing engineer will design a clamping fixture that locates it precisely and holds it under load. Sub-4h reply, NDA standard.
Why source clamping fixtures through Additive Plus
- Custom fixtures engineered to your part geometry and matched to your QATM or QNESS tester
- Designed and built in Austria by the manufacturer of the testers they fit
- Removes part movement as a source of hardness-result scatter — repeatable, standard-compliant testing
- <24h response · part of a full metallography and hardness-testing chain from one partner
| Brand | QATM |
| Type | Clamping fixtures for hardness testers |
| Design | Custom to workpiece geometry |
| Compatibility | QATM / QNESS bench testers & automated plants |
| Workpieces | Round bars, rings, tubes, gears, irregular castings, small parts |
| Made in | Austria |
Buying a hardness tester too?
Order clamping fixtures together with a QATM or QNESS hardness tester and we'll match them as one system — the fixture engineered to your parts, ready on day one.
