Industrial Vacuum Cleaners, Industrial vacuum cleaners for liquids

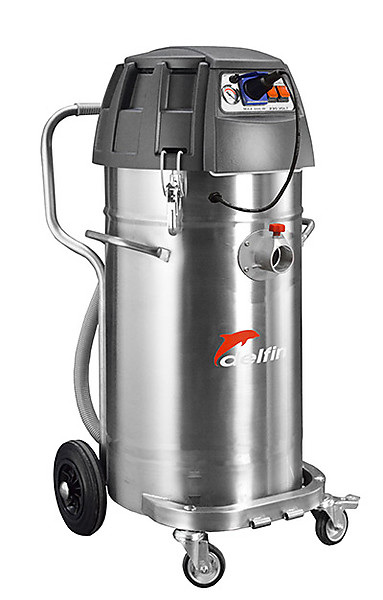

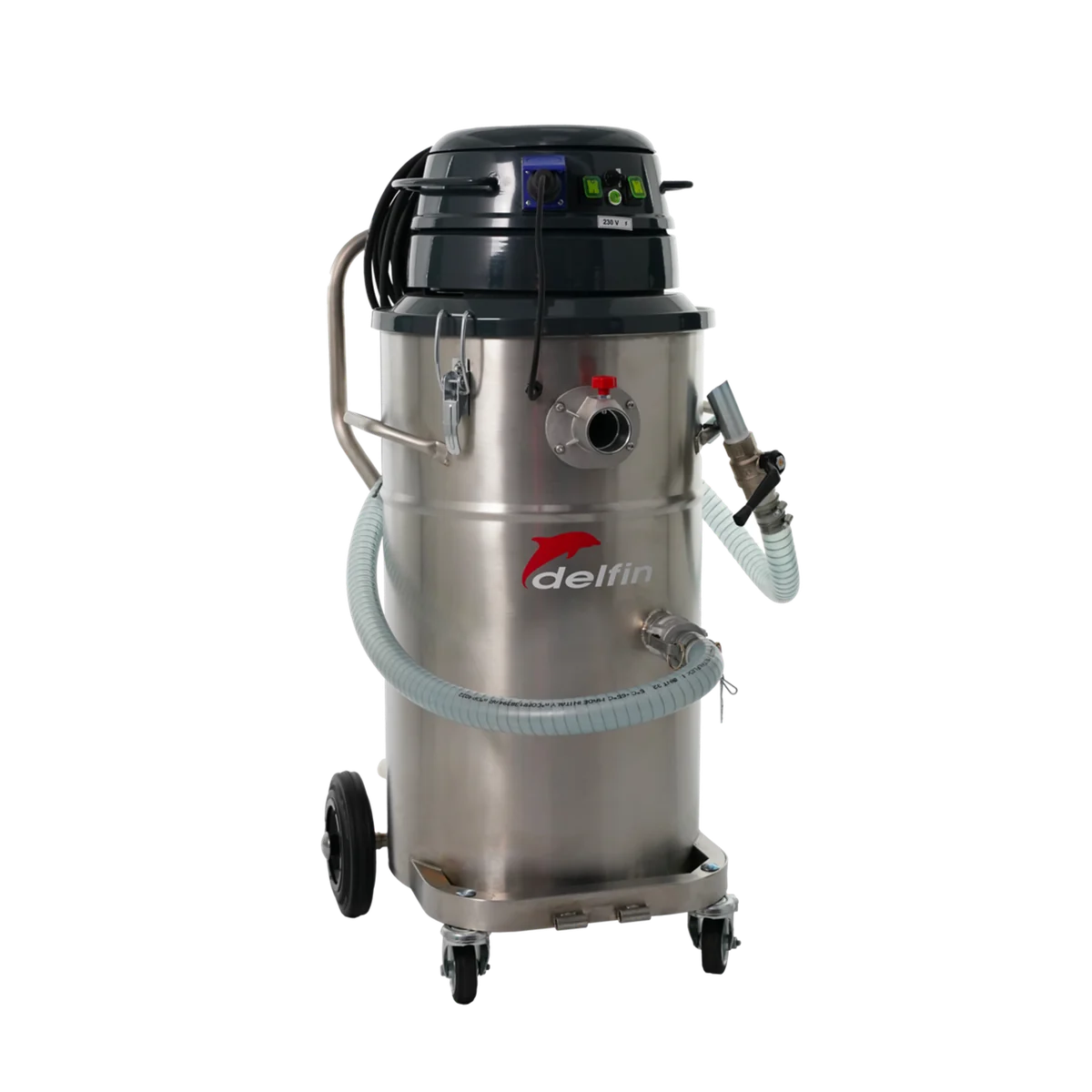

MTL 802 WD
The MISTRAL 802 WXP is a liquid remediation vacuum for flooding applications
$3,204
Lot # and price held 7 days after order.
NDA standard
Ships in 1–2 business days
Spec-match guarantee on every lot
Built for production teams
What your process engineer actually checks
Locked, traceable lot chemistry
Every lot ships with a COA documenting PSD, sphericity, flow rate, apparent density, and full chemistry — and a lot number you can trace. Aerospace and medical teams reorder 4+ times without re-qualifying.
Qualified parameters, not just powder
Validated parameter sets for EOS M 290, Renishaw 500Q, SLM 280, and our own AO Metal LPBF ship with the order. Load the profile and hit density on the first build — no parameter-development burn.
A materials engineer on the line
Questions on ferrite content, flowability, recyclate ratios, or HIP response? A materials engineer answers directly — not a contact-form bot. Most replies in under 4 hours, NDA standard.
About this product
FEATURES
• Two powerful by-pass motors with independent cooling
• Compact and mobile
• PPL filter for chips separation
• Discharge hose for liquids
• Accessory kit as standard
• Submerged pump for the discharge of the liquid
• Stainless steel AISI304 collection tank
• Simultaneous operation of liquids vacuuming and discharge
SUCTION UNIT
The suction is provided by two by-pass motors, using carbon brushes, operated by
independent switches and placed inside a sturdy steel casing, filled with soundproofing material.
FILTER UNIT
A floating device stops the suction whenever the liquid in the container reaches the maximum level and prevents overflowing.
COLLECTION UNIT
The vacuum cleaner is mounted on a solid steel trolley, provided with a support for hoses
when not used, and equipped with oil proof wheels and braking castors.
The stainless steel collection tank has a quick system for the rapid disposal of the
material.

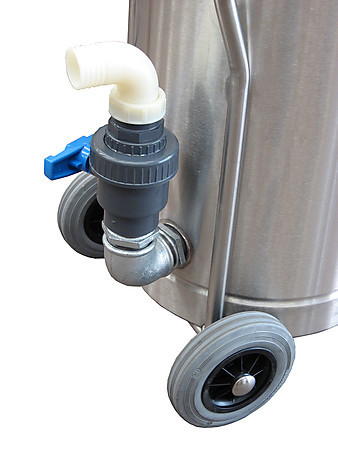

The filtered liquid can be discharged easily and quickly thanks to a submersible pump.
• Two powerful by-pass motors with independent cooling
• Compact and mobile
• PPL filter for chips separation
• Discharge hose for liquids
• Accessory kit as standard
• Submerged pump for the discharge of the liquid
• Stainless steel AISI304 collection tank
• Simultaneous operation of liquids vacuuming and discharge
SUCTION UNIT
The suction is provided by two by-pass motors, using carbon brushes, operated by
independent switches and placed inside a sturdy steel casing, filled with soundproofing material.
FILTER UNIT
A floating device stops the suction whenever the liquid in the container reaches the maximum level and prevents overflowing.
COLLECTION UNIT
The vacuum cleaner is mounted on a solid steel trolley, provided with a support for hoses
when not used, and equipped with oil proof wheels and braking castors.
The stainless steel collection tank has a quick system for the rapid disposal of the
material.
The filtered liquid can be discharged easily and quickly thanks to a submersible pump.
WET APPLICATION
• Compact and portable
• Two powerful bypass motors with independent cooling
• PPL filter for chips separation
• Stainless steel AISI304 collection tank
• Large storage capacity (21 gal)
• Immersion pump for liquids discharge
• Accessory kit as standard
WET APPLICATION
• Compact and portable
• Two powerful bypass motors with independent cooling
• PPL filter for chips separation
• Stainless steel AISI304 collection tank
• Large storage capacity (21 gal)
• Immersion pump for liquids discharge
• Accessory kit as standard
| Brand | Delfin |
| Voltage | 115 V – 60 Hz |
| Power | 2.7 (2.0) HP |
| Max Water Lift | 90.1 inH20 |
| Max Airflow | 211.9 CFM |
| Suction Inlet | 2 in |
| Liquids Capacity | 21 gal |
| Dimensions (WxLxH) | 53x59x106 cm / 21x23x42 in |
| Noise Level (EN ISO 3744) | 76 dB(A) |
| Weight | 110 lbs |
| Wet Primary Filter Type | Bag |
| Material – Efficiency | Polypropylene (300 µm) |
| Filter Surface Area | 9.0 ft² |
| Air load on filter | 24.6 ft/min |
