Redefining Automotive Innovation with Rapid Prototyping

Automotive development is moving fast. Tight deadlines, rising material costs, and complex part requirements make traditional manufacturing harder to justify early in the process. That’s why more teams are turning to rapid prototyping.

But what is rapid prototyping, and why does it matter to automotive manufacturing?

In simple terms, it’s a faster, more flexible way to test part designs using tools like 3D printing. With rapid prototyping automotive teams can produce parts in hours instead of weeks—cutting costs, speeding up testing, and reducing risk. Whether it’s early R&D or late-stage design validation, rapid prototyping helps solve problems before they become expensive mistakes.

At Additive Plus, we work closely with manufacturers to bring proven solutions like 3D printing automotive parts to life.

This case study highlights how Farsoon Technologies—one of our technology partners—is helping automotive suppliers simplify development and stay competitive through 3D printing in automotive industry applications.

Traditional Manufacturing Limitations In Automotive Prototyping

Before adopting rapid prototyping, most automotive teams rely on methods like CNC machining or silicone molding for early part production. While these techniques are familiar, they come with major drawbacks—especially when time and precision matter.

Common Limitations of Traditional Methods:

• CNC Machining: Creating large, detailed parts using CNC often means breaking them into smaller pieces, machining them one by one, and then assembling them by hand. This introduces delays, labor costs, and potential for errors at the joining points. Plus, tight design features like undercuts are often hard to achieve without multiple tool changes.
• Silicone Molding: This method requires a long, multi-step process to create just one mold. It’s slow, costly, and lacks the accuracy needed for high-tolerance parts. Shrinkage, warping, and dimensional variation are common issues, especially problematic in automotive use cases where every millimeter counts.
• Limited Design Flexibility: Both methods restrict the complexity of part designs. Parts with organic shapes, internal structures, or curved cavities may need to be redesigned just to fit manufacturing constraints.

These limitations slow development and increase production risk when working with automotive components like HVAC housings, intake systems, or dashboard assemblies. Rapid prototyping automotive solutions, especially 3D printing in automotive industry workflows, offer a better path forward.

With 3D printing automotive parts, you can skip tool changes, simplify your process, and build the exact geometry you need from day one, cutting days or even weeks off your timeline.

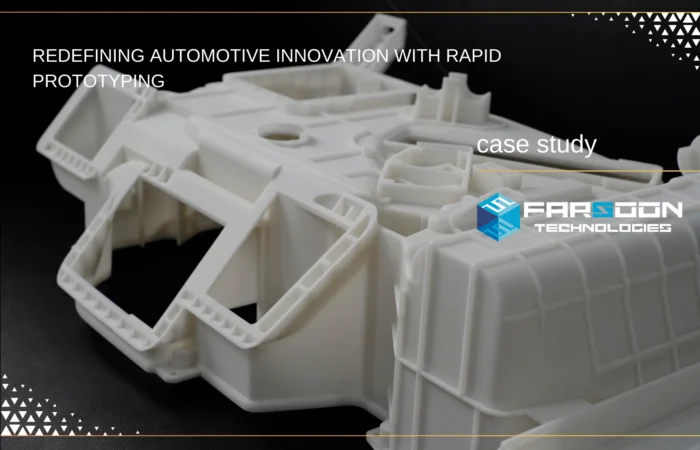

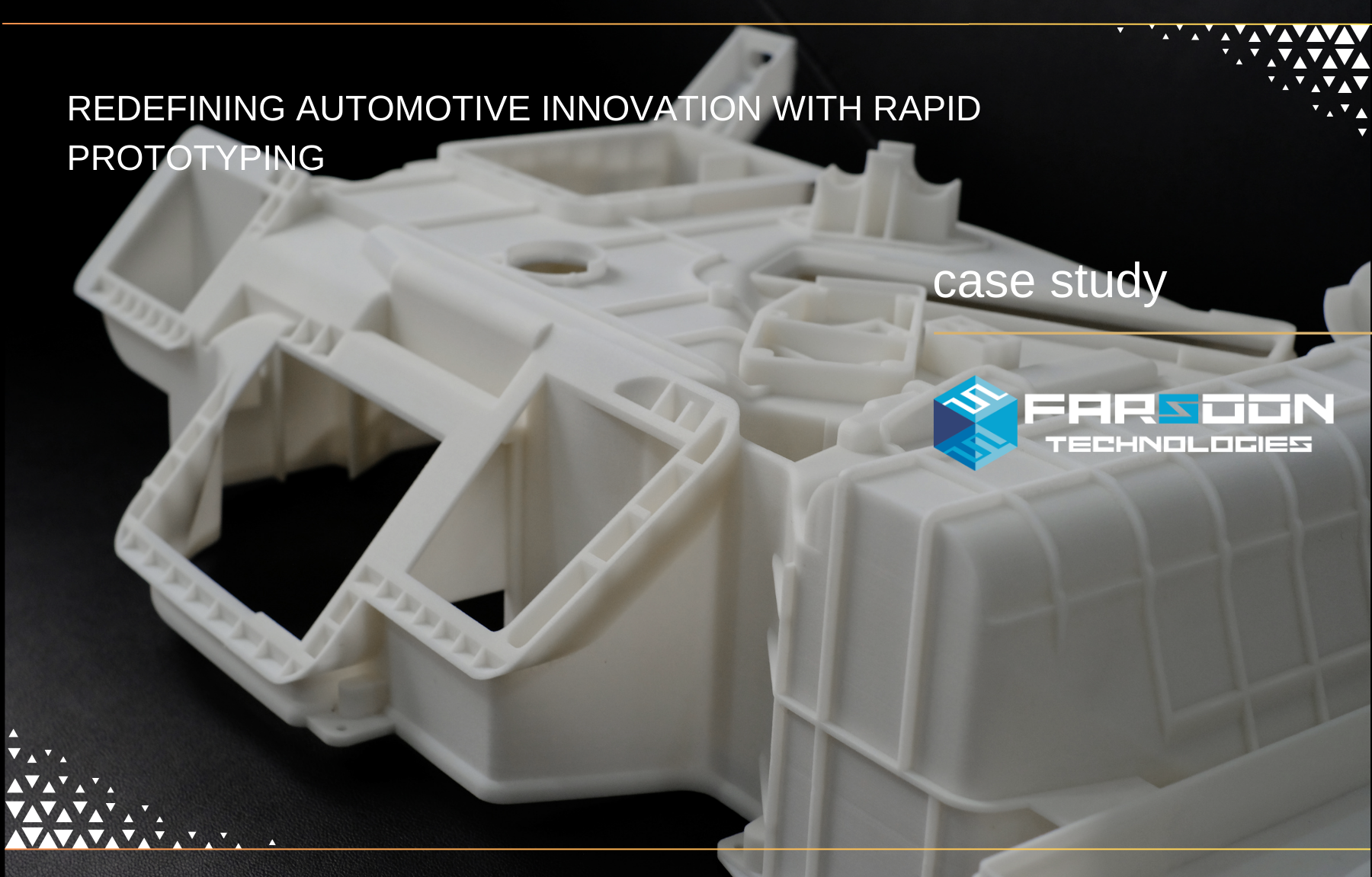

Farsoon’s Breakthrough With The HT1001P: Automotive HVAC Housing Case Study

One clear example of rapid prototyping automotive success comes from Farsoon Technologies, in collaboration with SAPW Automotive Technology Co.

The challenge? Producing a large, highly detailed HVAC (Heating, Ventilation, and Air Conditioning) housing, normally assembled from multiple CNC-machined or molded parts, into a single, functional prototype.

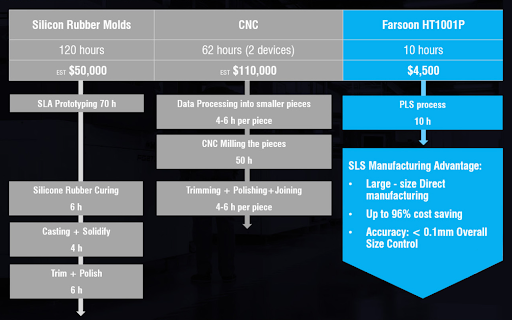

The Traditional Process:

• CNC Manufacturing: Required segmenting the design, 50+ hours of machining, and additional time for manual assembly.
• Silicone Molding: Took over 120 hours from start to finish, with accuracy limitations and a labor-intensive process.

Both methods introduced complexity, high labor costs, and potential fitment issues. They weren’t efficient or reliable enough for an application that needed smooth surfaces, tight tolerances, and internal structures.

What Changed with 3D Printing?

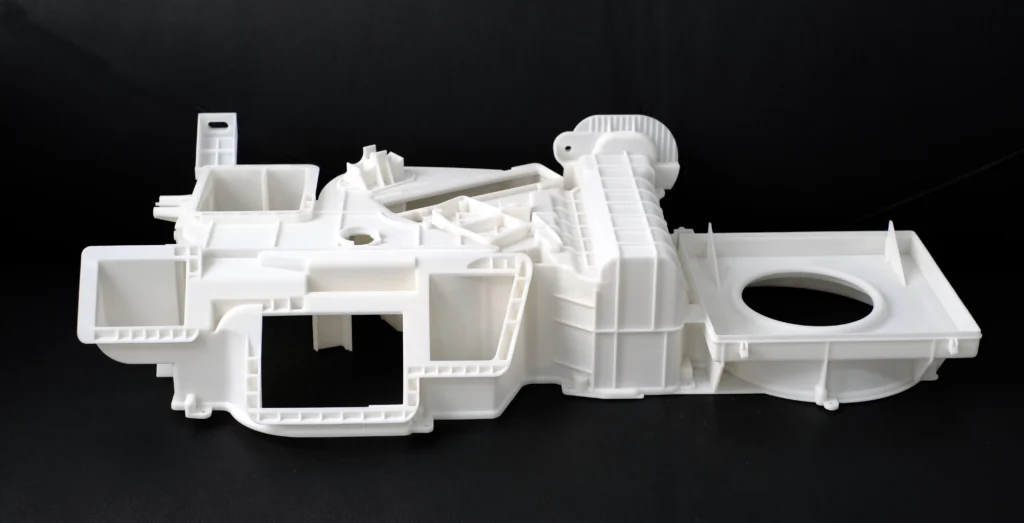

Using the Farsoon HT1001P, the same HVAC housing was printed as one seamless part in just 10 hours.

• No cutting or re-assembly required
• No added tooling or custom fixturing
• Stronger part quality with no joint weaknesses
• Smoother internal channels for airflow
• Lower material and labor costs


This is a real-world application of 3D printing automotive parts—delivering speed, strength, and functional design in a way that traditional methods couldn’t match.

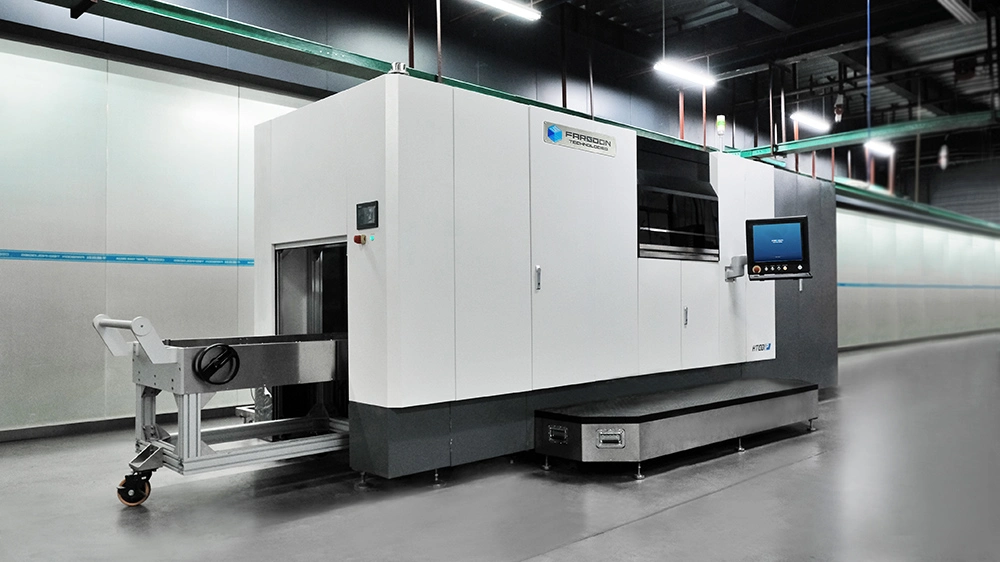

About the HT1001P:

Farsoon’s HT1001P is designed for industrial-scale prototyping and low-volume production. With a build size of 1000 x 500 x 450 mm, it’s built to handle large-format polymer parts with complex internal features—ideal for the automotive sector.

The CAMSIZER X2 provides information on particle width (red), particle length (blue) and the equivalent circle diameter (green).
The x50 value of the latter is usually more or less similar to the measurement of the laser particle analyzer (black*). The laser diffraction analyzer and the CAMSIZER X2 width measurement show a similar distribution for small particles. The percentage of oversize particles detected by the CAMSIZER X2 is in very good agreement with the results of sieve analysis. (orange *) whereas the laser sizer calculates too many large particles compared sieve analysis.

Example 2: Titanium and steel powder

Titanium powder is used, for example, in the aerospace industry. Our example shows two sets of measurements of two powders with different size distribution. The CAMSIZER X2 measurements demonstrate excellent reproducibility and agreement with sieve analysis results.
Note that each measurement of the steel powders took less than 20 sec. Two metal powder samples (titanium and steel) measured with the CAMSIZER X2 using the X-Jet dry dispersion module with 20 kPa dispersion pressure. the four measurements of the steel powder (different shades of red) took less than 20 seconds each. The reproducibility is excellent as can be seen from the almost perfect overlap of the four curves. The same can be said for the two titanium powder measurements (light blue and dark blue), which also agree perfectly with sieve results (black*).

Example 3 – Fine Metal Powders

Even close to the detection limit of 1 μm, the Camsizer X2 offers better resolution and sensitivity than a laser particle sizer. These types of powders are typically used in Metal Injection Molding (MIM) processes.

Two measurements of fine metal powders with a d50 value of 4.5 μm and 5.2 μm measured in dry dispersion mode. The CAMSIZERX2 analyzes fine powders down to 1 μm with excellent resolution, repeatability and sensitivity

Elevate Your 3D Printing with Additive Plus

The CAMSIZER X2 is ideal for determining the particle shape and particle size distribution of fine metal powders. Especially in modern powder metallurgical processes such as additive manufacturing, dynamic image analysis provides valuable information for the usability of both raw materials and recycled material. Particularly noteworthy are the short measuring times, the high sample throughput, the reliable detection of even the smallest amounts of oversize, and the finding of particles that deviate from the desired shape.

If you’re ready to take your 3D printing projects to the next level, Additive Plus is here to help. With over 10 years of experience, we specialize in helping clients integrate and optimize 3D printing technologies seamlessly into their operations.

Our curated portfolio features industry-leading brands like Farsoon Technologies, Kings3D, offering a wide range of materials and services to meet diverse needs. From design to consulting, we provide the expertise and tools to bring your ideas to life.

FAQ

Particle size and shape are critical parameters that influence the flow behavior of powders, the operating conditions of the printer, and the properties of the final product. Round particles in a narrow size range typically flow better and allow for more homogeneous deposition. However, if the size range is too narrow, it can lead to lower packing density and potential voids in the final component.

The CAMSIZER X2 utilizes Dynamic Image Analysis (DIA), which measures both the length and width of particles independently, providing a more accurate representation of particle shape and size. In contrast, traditional methods like laser diffraction only calculate one size parameter based on a spherical model, which can lead to misinterpretation of irregularly shaped particles.

The CAMSIZER X2 can analyze a variety of metal powders, including aluminum, cobalt, chromium, inconel, manganese, molybdenum, nickel, steel, titanium, tungsten, silver, gold, and their respective alloys.

Yes, by providing comprehensive analysis of particle size and shape, the CAMSIZER X2 ensures that only high-quality powders are used in the printing process. This consistency is vital for producing reliable and high-performance components in additive manufacturing.

The CAMSIZER X2 measures particle width, length, and equivalent circle diameter. This detailed analysis helps in understanding particle shape and size distribution, which is crucial for applications like additive manufacturing.

The CAMSIZER X2 can perform measurements on metal powders in less than 20 seconds per sample. This high throughput makes it suitable for rapid quality control and analysis in industrial applications.

The CAMSIZER X2 is capable of analyzing a variety of metal powders, including titanium and steel, among others. It is particularly effective for fine powders with a particle size down to 1 μm

Dynamic image analysis with the CAMSIZER X2 provides valuable insights into particle shape and size distribution, which are essential for optimizing raw and recycled materials in additive manufacturing. The ability to detect small amounts of oversized particles and deviations from desired shapes enhances the overall quality and performance of printed components.
