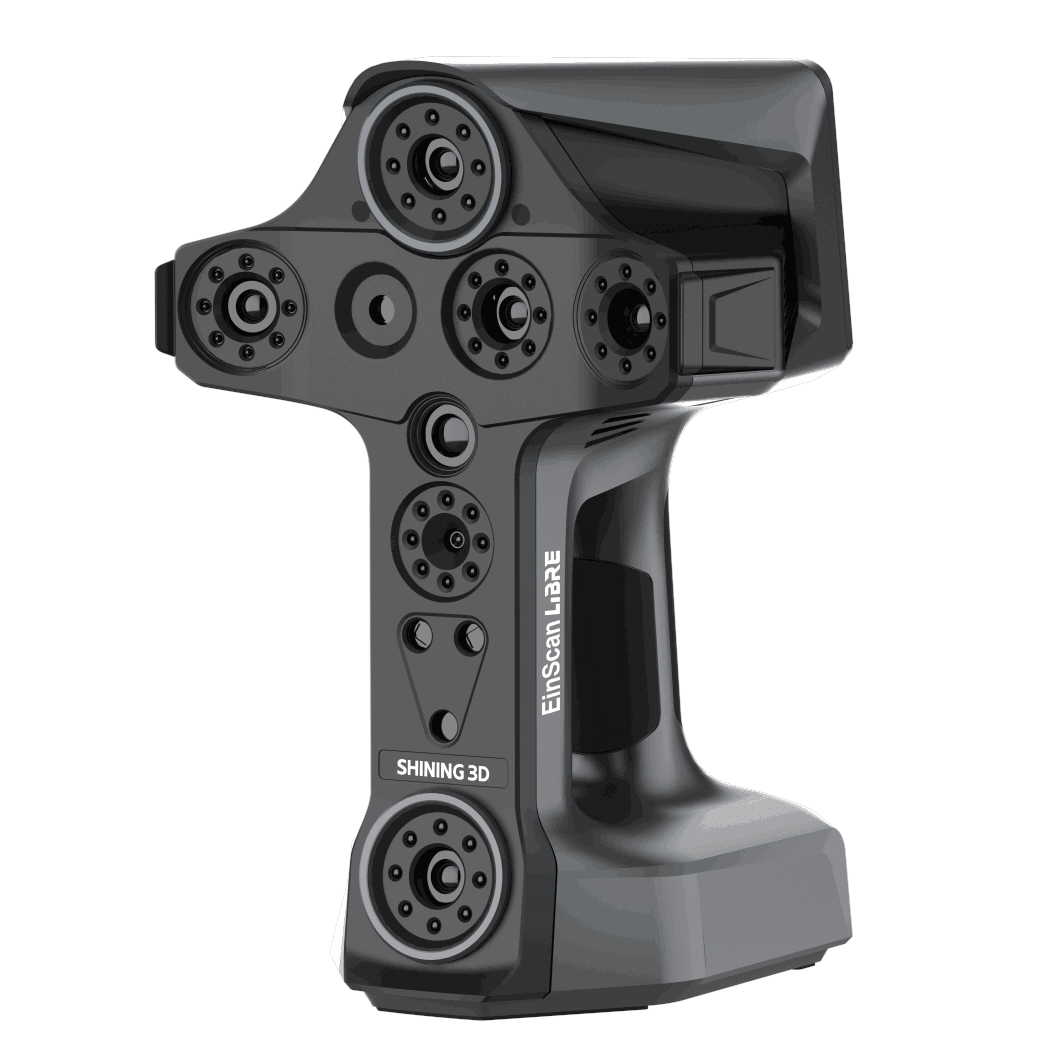

Wireless Handheld Shining 3D EinScan Libre Scanner
$28,999
The Shining 3D EinScan Libre is a wireless, markerless, all-in-one 3D scanner that offers full-color and high-precision scanning for various applications, including 3D printing, CAD, and reverse engineering. Its versatility makes it ideal for a wide range of projects, whether scanning small objects, bore measurements, or larger environments. With easy setup and enhanced functionality, this scanner is designed for users needing a fast, efficient, and detailed 3D scanning solution. Enjoy the added benefit of a 1-year EXModel license and extended warranty with your purchase.
On backorder
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Get ready, get Libre!
The EinScan Libre delivers a fully wireless, standalone 3D scanning experience, powered by its built-in screen and NVIDIA processor. It offers the perfect balance of freedom and efficiency, ensuring reliable results with versatile, user-friendly operation.
Completely wireless
Complete on-device workflow
High-performance processor
Multiple scan modes
Laser & infrared light
Lifelike color reproduction
Cut the Cord, Go Wireless
- 5.5-inch OLED display: Capture, view, and manage your scans effortlessly with its user-friendly touchscreen UI.
- Embedded computing system: Scan and process independently, with all functions built into the device—no laptop required.
- Rechargeable batteries: No time for downtime? Just reload and keep scanning. Slide your batteries into the convenient charging dock and be ready to scan at all times.
Brains Behind the Speed
Equipped with a high-performance processor and generous storage, the EinScan Libre provides wireless freedom without compromising computing speed.
- Powerful NVIDIA processor: The integrated Jetson Orin NX 16GB, 8-core CPU and Ampere GPU with 1024 CUDA cores delivers fast data processing.
- 1TB SSD: Room to roam. With expansive storage, you can scan freely without worrying about running out of space—whether high-res models or hefty projects.

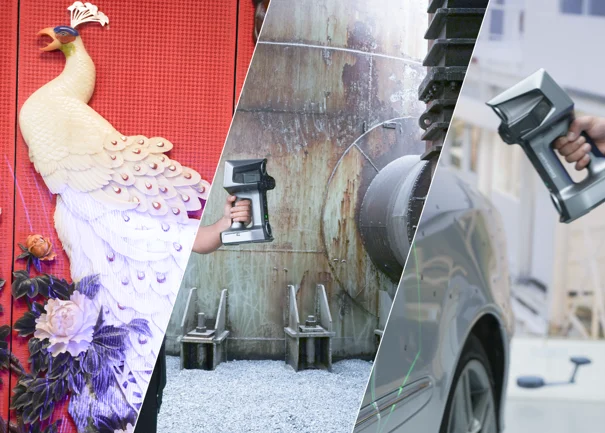

All Modes On Deck
Switch between the EinScan Libre’s three versatile scan modes to cover object sizes ranging from 0.1m to over 10m. These IR (infrared) and laser modes help the scanner adapt to all kinds of materials, whether you’re indoors or outdoors in direct sunlight.
IR Adaptive Mode
- 38 IR laser lines
- Volumetric accuracy up to 0.04 + 0.06 mm/m

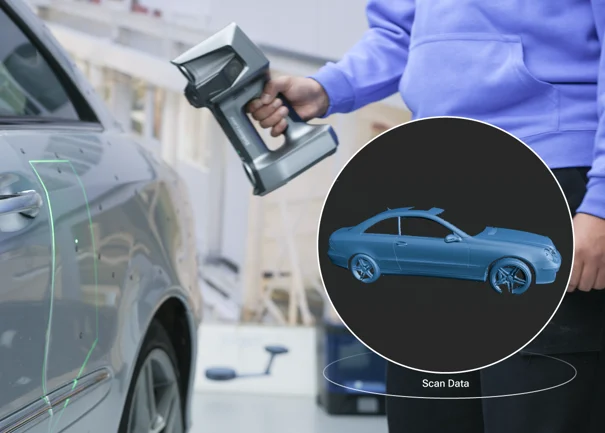

Laser HD Mode
HD Mode
Revolutionary 101 laser lines enable maker-free, high-detailed scanning with rich texture.
- Resolution up to 0.05 mm
- 101 blue laser lines
- Supports texture alignment
IR Rapid Mode

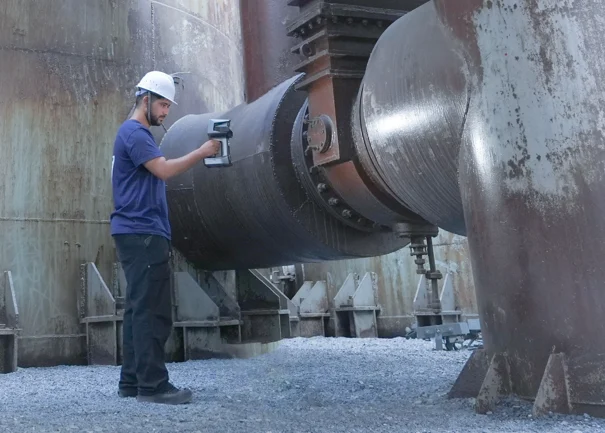

Ideal for larger areas, this mode offers marker-free and high-efficiency scanning with invisible, eye-safe infrared light. It’s less sensitive to ambient light, making it perfect for outdoor use.
- Working distance up to 1.5 m
- FOV of 983 x 979 mm

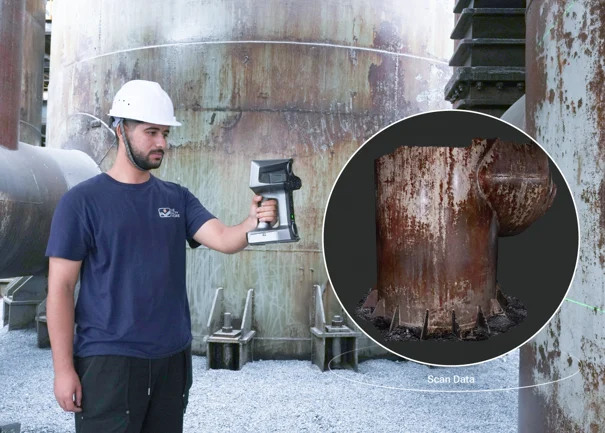

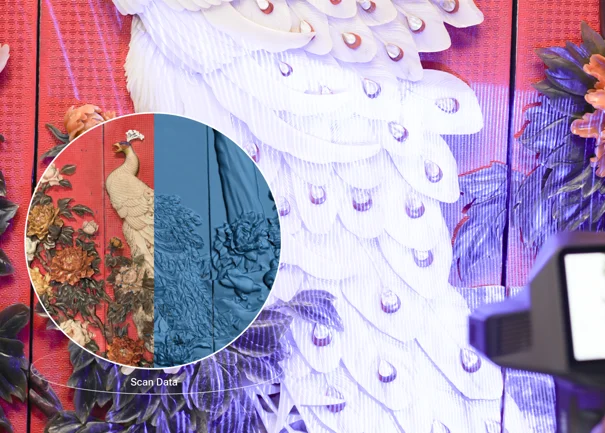

Lifelike Color Reproduction
Experience high-resolution color capture with the EinScan Libre. Equipped with a 48MP color camera, it delivers lifelike color fidelity, capturing every detail with clarity and vibrant colors. The EinScan Libre ensures your scans reflect the full richness of the scene or object you’re scanning.
Where Wireless Meets Accuracy
Experience the perfect blend of freedom and accuracy with the EinScan Libre. This advanced wireless scanner delivers an impressive volumetric accuracy of up to 0.04 + 0.06 mm/m, ensuring that every detail is captured with pinpoint precision. Whether working on intricate designs or complex projects, the EinScan Libre provides the reliability and accuracy you need, all in a truly wireless device.
Complete On-Device Workflow

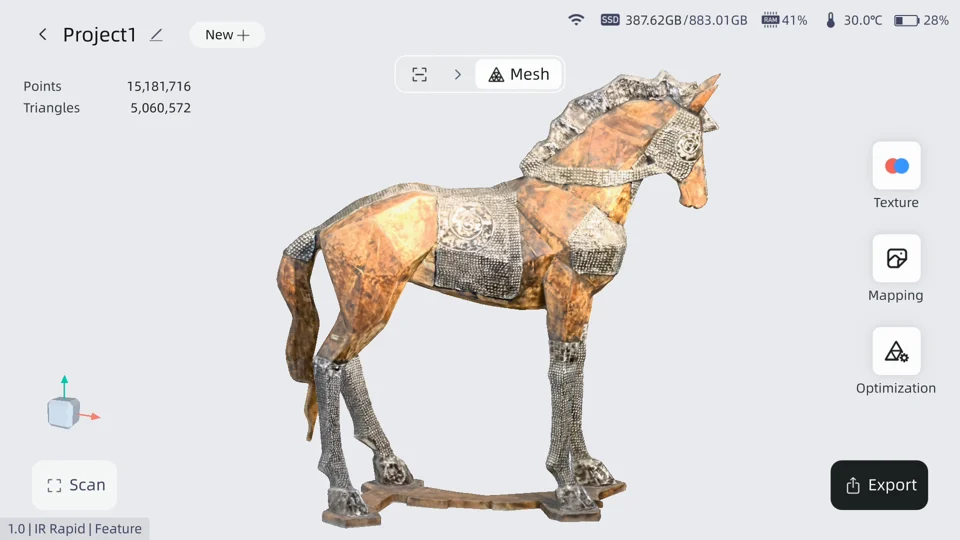

Mesh data output
Easily generate mesh data with a single click, completing the entire process directly on the device. Export in STL, OBJ, ASC, and LAS formats, suitable for a wide range of applications.

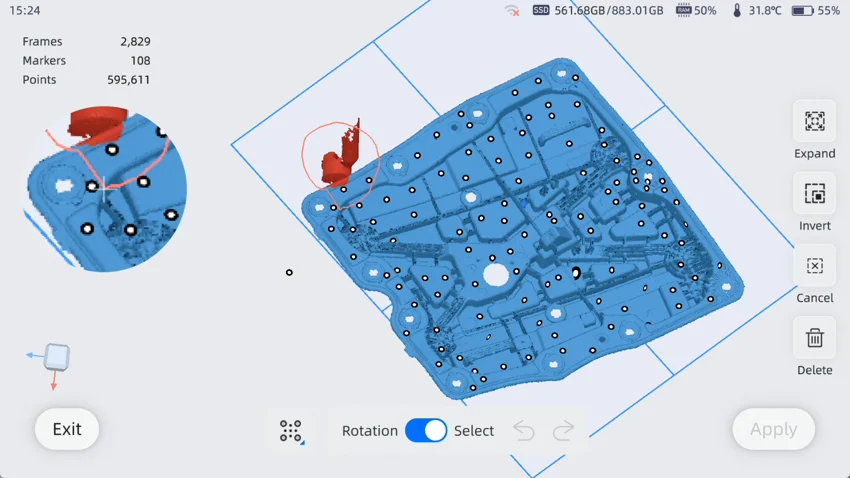

Quick data editing
Edit scan data directly on the device, simplifying the workflow.
Data quality indicator
Blue areas indicate adequate data; yellow areas indicate that further scanning is required.
Range indicator box
In-project resolution adjustment

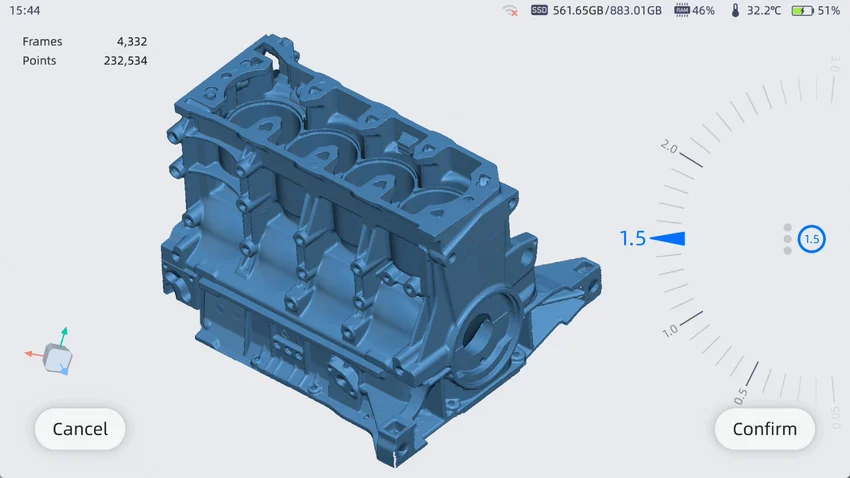

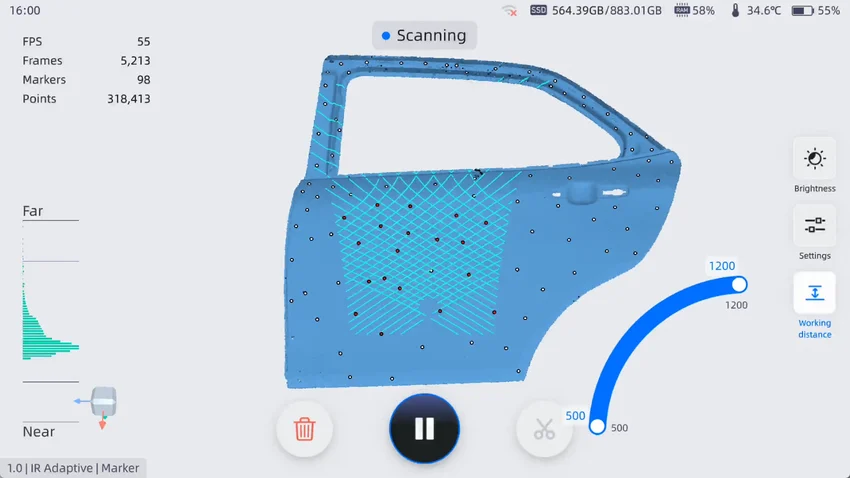

Working distance adjustment

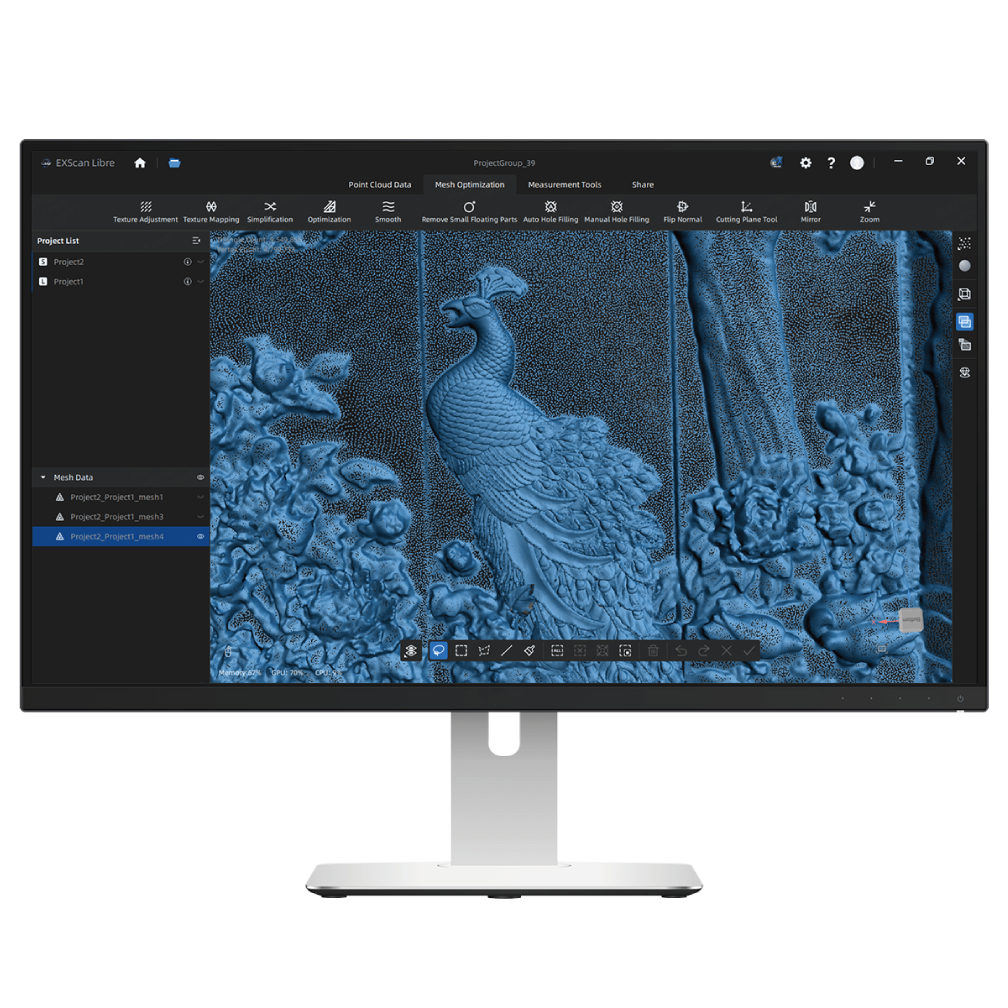

Enhanced PC Integration
Resource-efficient system
Delivers a smooth performance without the need for high-spec computers.
Multi-resolution fusion
Multi-resolution fusion Effortlessly combine scans with different resolutions across various modes for enhanced results.
Flexible workflow
Multi-tasking workflows that offer enhanced flexibility, allowing you to go beyond single-threaded operations.
Measurement functions
Supports multiple coordinate alignment methods as well as distance, surface area, and volume calculations.
- Brand Shining 3D
- Country of origin China
- Light Source IR Rapid: IR VCSEL IR Adaptive: 38 IR laser lines Laser HD: 101 IR blue laser lines
- Point Distance IR Rapid: IR VCSEL 0.5 - 10 mm IR Adaptive: 38 IR laser lines 0.5 - 10 mm Laser HD: 101 IR blue laser lines 0.05 - 3 mm
- Weight 1.8 kg, 3.9 lbs
- Effective Working Distance IR Rapid: IR VCSEL 500 - 1500 mm IR Adaptive: 38 IR laser lines 500 - 1200 mm Laser HD: 101 IR blue laser lines 200 - 500 mm
- Data Alignment Mode Markers, global markers, feature, texture, hybrid
- Full Color Scanning Yes
- Outdoor Scanning Yes
- Output Formats OBJ, STL, PLY, ASC, 3MF, LAS
- Interface Wi-Fi 6, USB Type C
- Dimensions 162x182x266 mm
